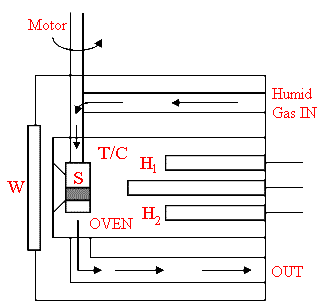

Schematic of Humidity Cell
H = Heaters, S = Sample,
W=Window, T/C = Copper
Constantin thermocouple

The oven is made of anodized aluminium.

All Ventacon cells operate in the sample area of your F-T Raman instrument with the lid closed. See Safe Operation oage for details on communication between the cell and the laboratory.

ORDERING
INFORMATION

Code Description
HH-1 Humidity Cell
HH-11 Spare sample curvettes
HH-12

Spare heater elements

SEE ALSO
Series D Universal and DV Power Supplies
